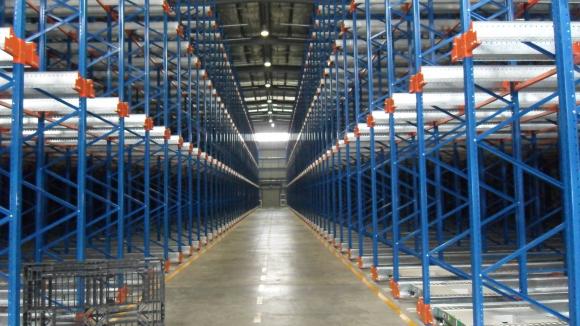

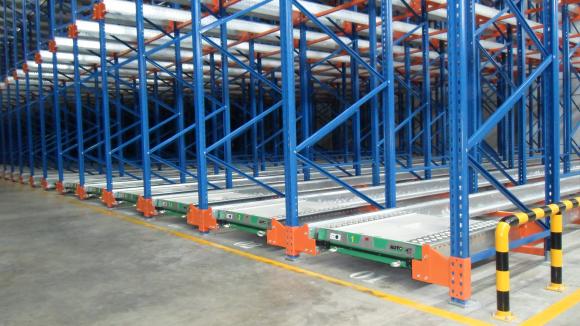

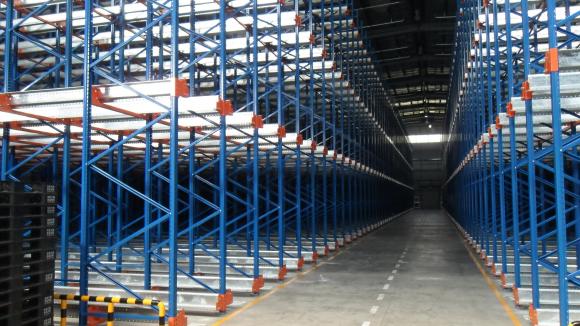

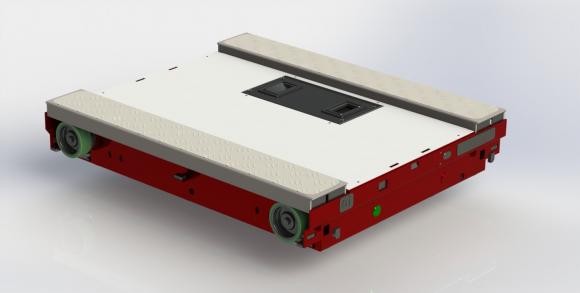

Bangkang shuttle car shelf system is evolved by the through type shelf system, but the forklift without entering shelves inside, overcome the through type shelves access speed is slow, poor stability of racking system faults, automate the access. Pallet by forklift whilst peripheral and internal tray goods access by shuttle car, or when the inventory is made up of columns of a forklift put to the pallet racking area a layer of the front part of the guide rail via a wireless remote control at the level of the shuttle car will tray goods shipped to the far, remote control shuttle bus will first when you pick up the goods shelves in the depth of the tray goods moved to guide port, again by forklift to get off on pallet. The characteristics of this kind of shelves system is to store very high space utilization, system is stable and reliable, which can realize semi-automatic, apply to the goods of few varieties mass storage, such as food, beverage, refrigeration and other industries!
Shelf uprights for prefabricated structure, by the number of lateral brace, brace and pillar assembled by high strength bolt connection. Shelves column with high strength bolt connection between the ground in the car on the ground, and ground the car through the anchor bolt connection to the ground; Between beam and column piece using four column card plug connection, and with a safety pin, which can effectively prevent because of forklift operator errors and fork off beam such as the accident; Bracket for whole stamping bracket, connection between the uprights and adopts inserting way, and with a safety pin lock; Guide bearing the punch, fold in and beams or bracket welding as a body, easy to guide the orientation and connection, carrying capacity is strong; Guide by continuous punching and special mill rolling forming, high precision, large section modulus, good rigidity, the bearing capacity is strong; With fixed guide rail bridge, on both ends of guide rail set safety buffer, prevent shuttle car stand out; Adjacent Fang Xiangzhu using separated through strengthening connection between, in order to improve the shelf bearing capacity and overall stability; The whole shelves system turned into an organic whole, very solid, safe.
The characteristics of panghsang shuttle car shelf:
1. High space utilization, can make use of about 80% ~ 85% of the space inside the warehouse, warehouse goods within the access efficiency increased significantly;
2. The forklift without entering the roadway, save operating time, improve the safety of people and goods;
3. Different kinds of products can be layered flexible access;
4. It can realize fifo and advanced;
5. Can automatically adjust inventory
